Failure Analysis Tests

Failure analysis is a systematic and scientific process used to determine why a component, material, or system failed during service. The aim is not only to identify the failure, but to understand the root cause and prevent recurrence. It is a critical discipline across industries like aerospace, automotive, and electronics used to identify root causes, prevent future occurrences, and improve product reliability

FAILURE ANALYSIS TEST

Visual Inspection: Non-destructive examination of the failed part to identify obvious clues like cracks, discoloration, or wear patterns.
Non-Destructive Testing (NDT): Using techniques like Radiography Test (RT ) or Ultrasonic Testing ( UT ) to inspect internal structures without altering the sample
Destructive Testing: Performing lab tests such as Scanning Electron Microscopy (SEM), chemical analysis, and hardness testing to analyze material properties at the failure site
Fractography and Metallurgical examination
Evaluation of service and operating condition
Root Cause Analysis (RCA): Applying logical frameworks like the Five Whys or Fishbone Diagrams to link physical evidence to systemic issues.

Failure Analysis Tests

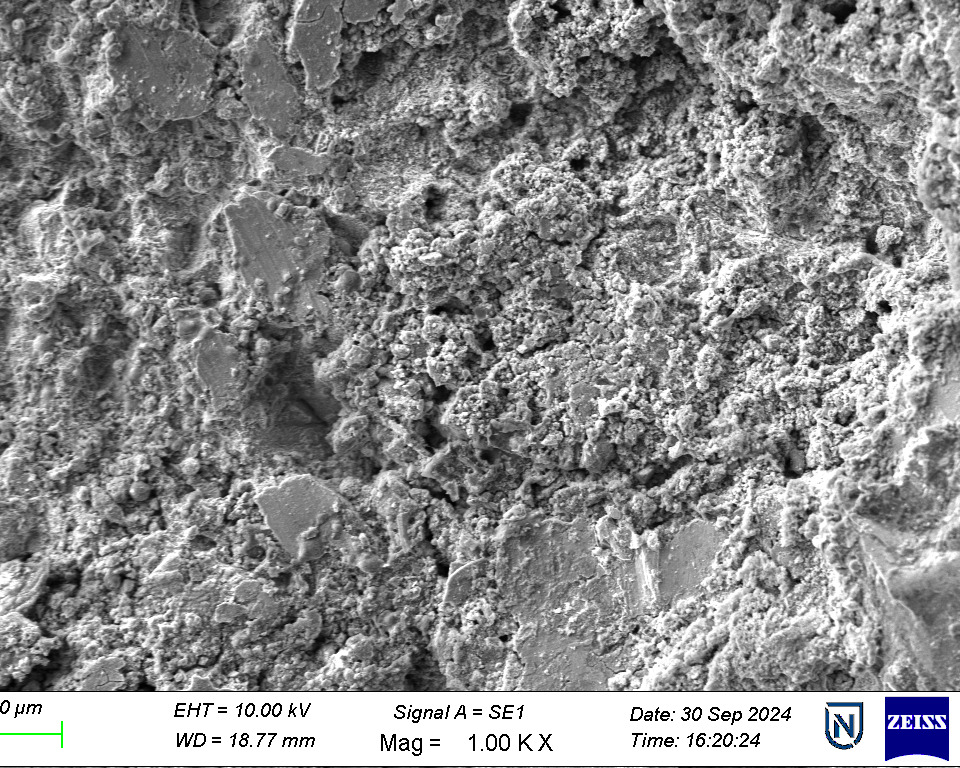

Brittle Failure_SEM1000x

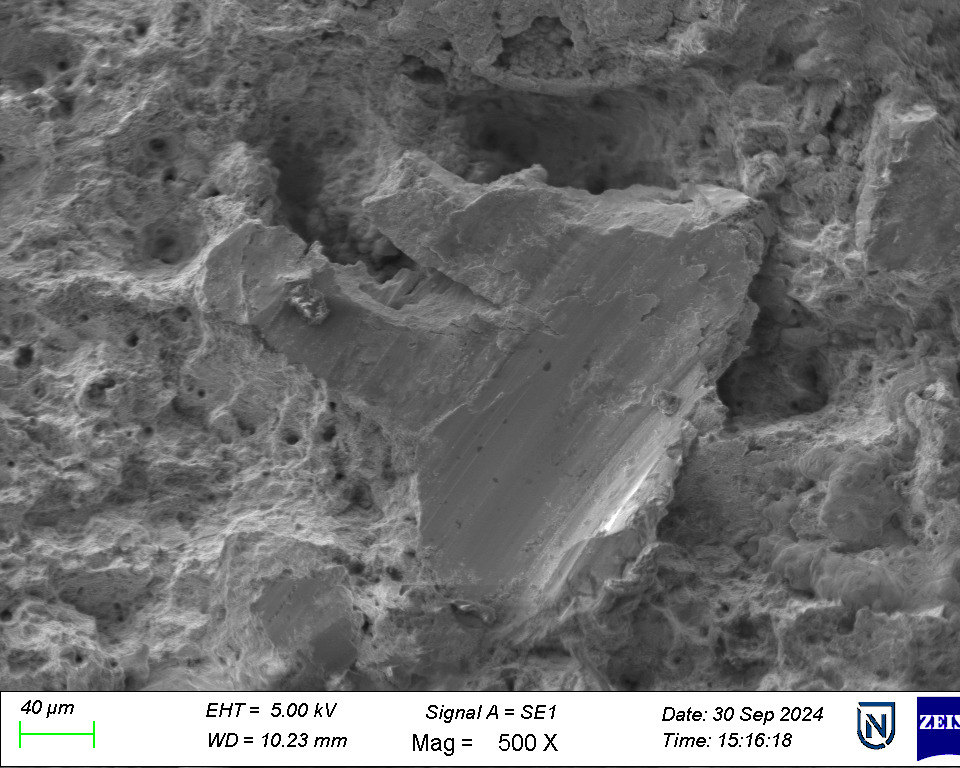

Failure Analysis_SEM500x__

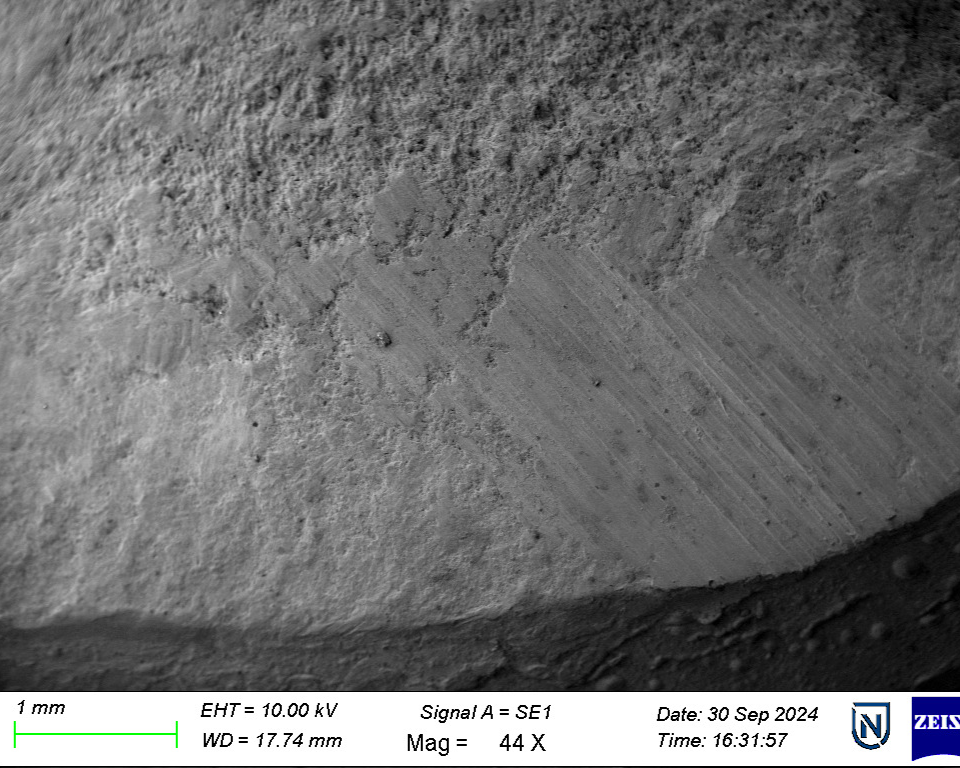

Initial Failure Region of Bolt _SEM44x

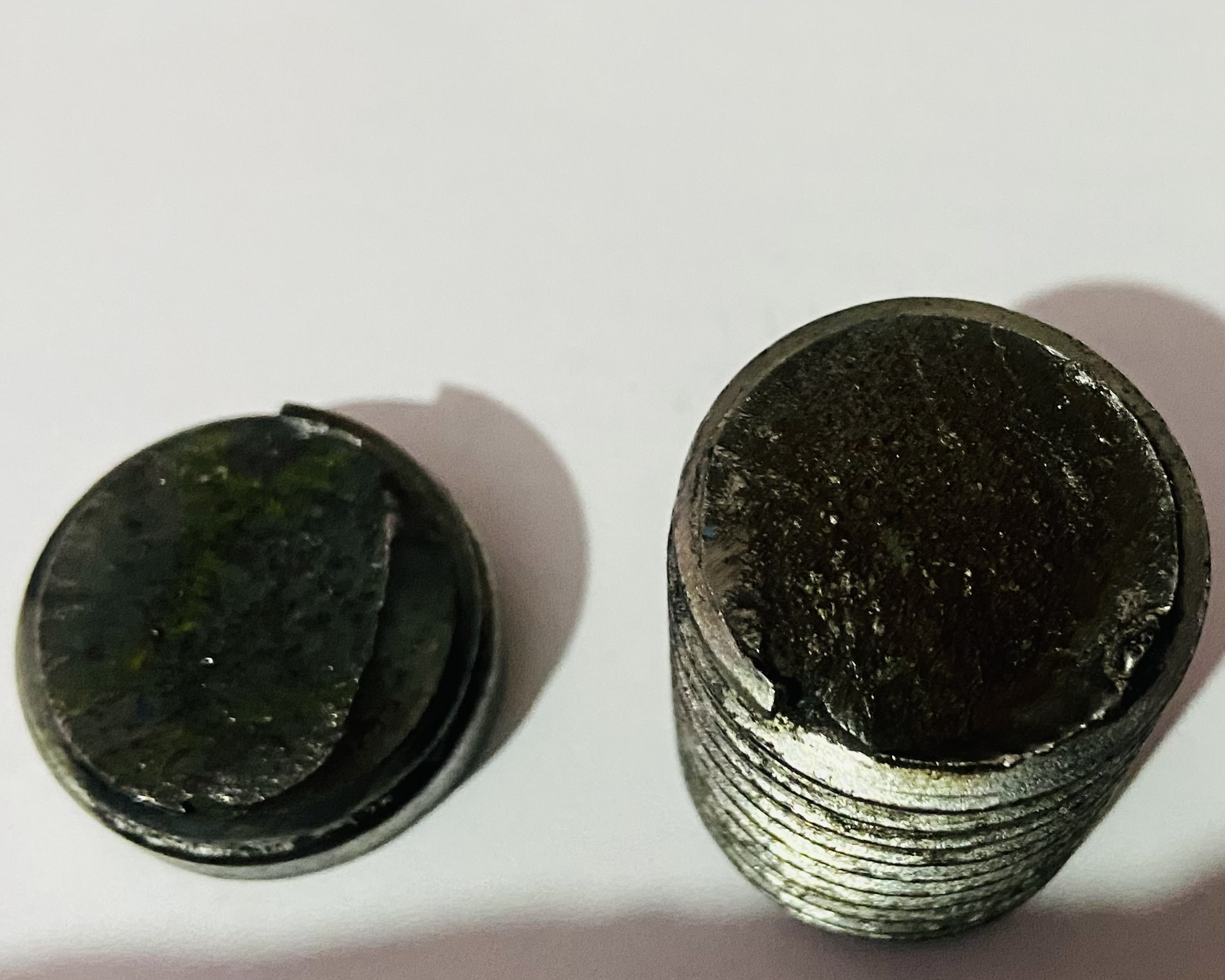

M30 Gr. 10.9 Failure Bolt

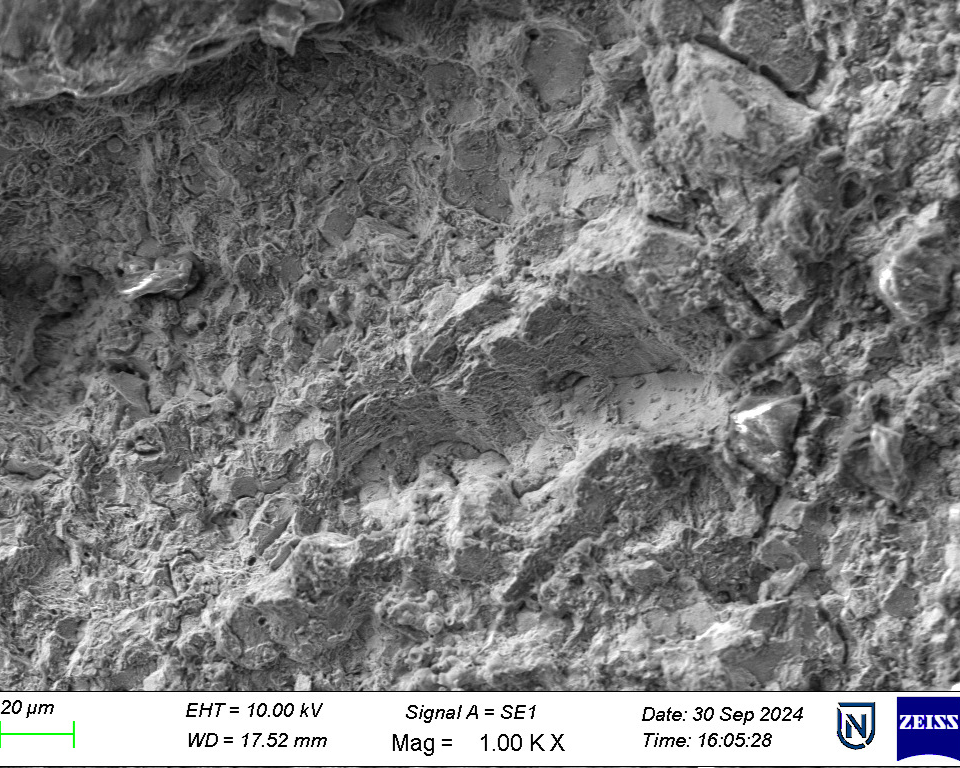

SEM Images 1000x

Weld Flow Analysis of ERW Tube _100x

Materials Tested:

Steel, Stainless Steel, Tool Steel, Cast Iron, Aluminium, Copper, and other alloy systems.

Why Failure Analysis Tests Matters

Failure Analysis Tests helps in:

Supporting failure analysis and quality assurance

Ensuring compliance with industry standards

Identifying manufacturing or service-related defects

Understanding material behavior and processing quality

25+

Years of Experience

Welder Qualification Support

We also support welder qualification and weld evaluation as part of metallographic assessment, in accordance with:
